Application Overview

Transact is launched by opening a URL in any browser. The URL carries the account identifier, configuration name, and optional parameters that control what the agent sees, how the payment is processed, and where results are sent.

https://{envDomain}.transact.aiphoria.net?account={account}

• sandbox — global sandbox
• uk — production UK

Everything the application does — which fields appear, which PSP is called, how the agent correlates a call, and what happens after submission — is driven by a configuration stored against the account. The sections below walk through the application screens, explain the configuration structure, and list every input parameter.

---

1. Application Walkthrough

Authorisation

Before reaching the capture screens, an agent must be authorised. Transact supports two authorisation modes:

• Dynamic agent authorisation — If the username parameter is supplied in the launch URL and the account is enabled for dynamic agent authorisation, the agent is authenticated automatically and taken straight to the application. No login screen is shown.
• Login screen — If username is not supplied, or the account is not enabled for dynamic agent authorisation, the agent is redirected to the login screen.

Login screens

When dynamic agent authorisation is not active, Transact shows a login form. The fields displayed depend on which parameters are already in the URL.

1

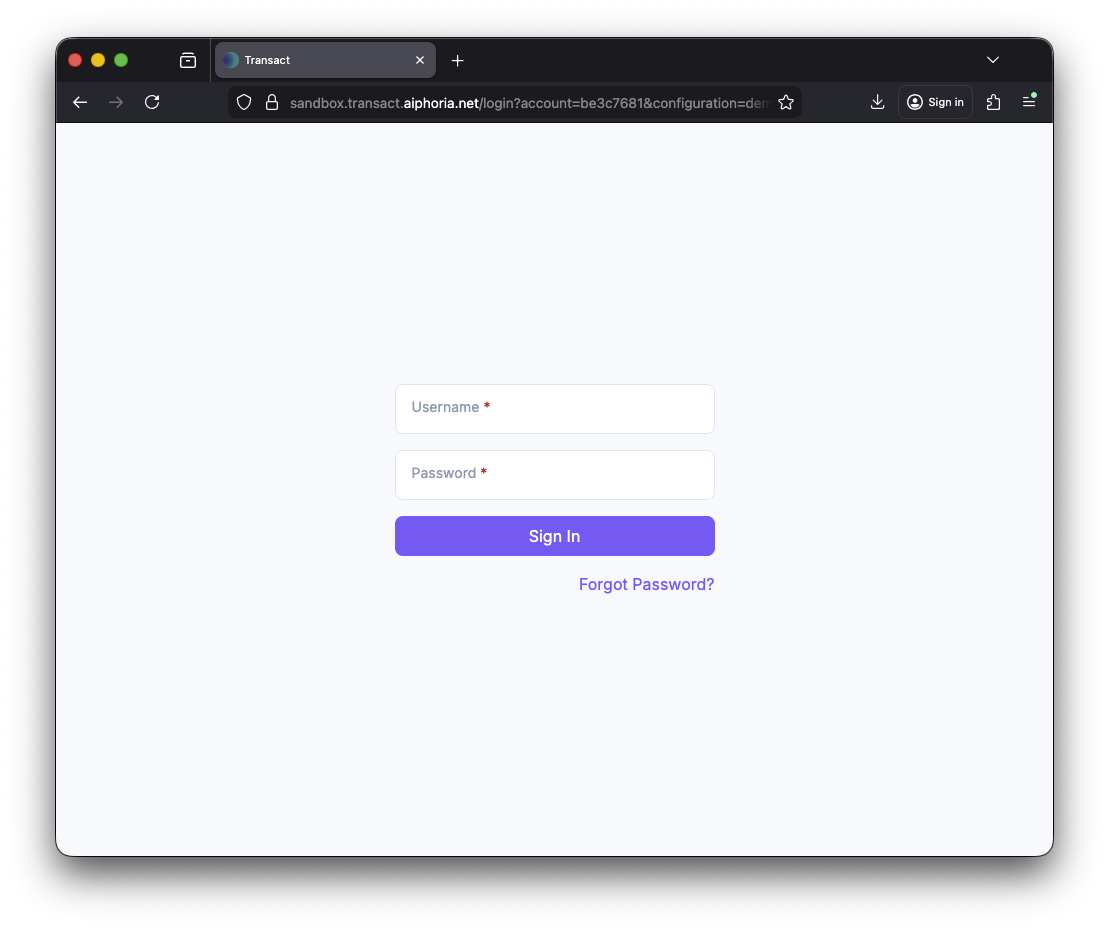

Login with account in the URL

When the account parameter is included in the launch URL, the login form pre-fills the account and only asks for Username and Password.

Step 1 of 2

---

Pay by Phone

Pay by Phone walkthrough

The agent correlates a live call, the customer enters card details via DTMF or speech, and the agent submits the payment.

1

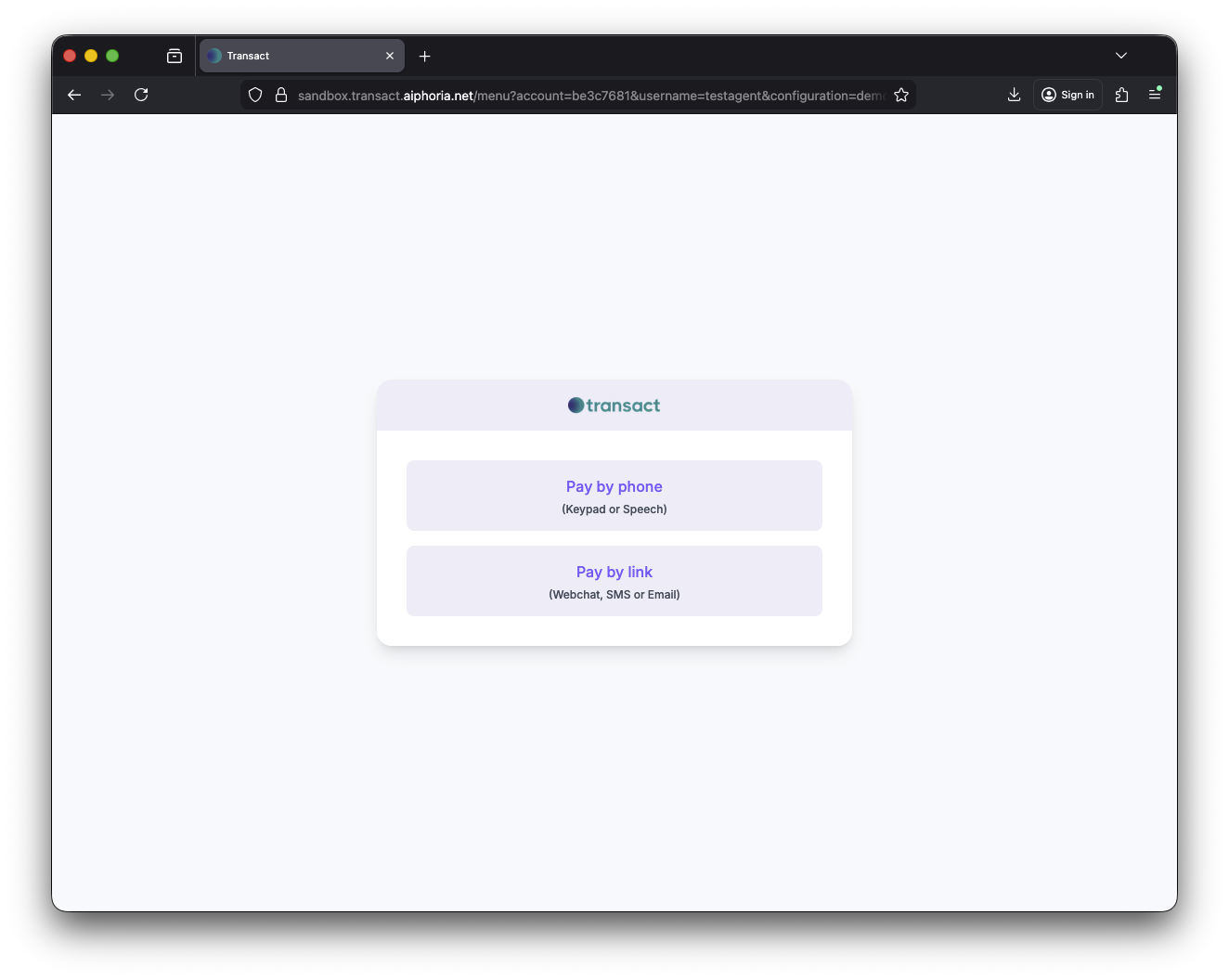

Bootstrap Menu

When bootstrap is enabled the agent lands on a menu offering Pay by Phone (Keypad or Speech) and Pay by Link (Webchat, SMS or Email). The configuration controls which options appear and which is the default.

Step 1 of 10

---

Pay by Link (Digital)

Pay by Link walkthrough

The agent sends the customer a secure capture link. The customer enters card details on their own device while the agent monitors progress in real time.

1

Bootstrap Menu

When bootstrap is enabled the agent lands on a menu offering Pay by Phone (Keypad or Speech) and Pay by Link (Webchat, SMS or Email). The configuration controls which options appear and which is the default.

Step 1 of 14

---

2. Configuration Overview and Options

Every Transact deployment stores one or more configurations as JSON documents against the account. The configuration name is passed in the launch URL via the configuration query parameter. If omitted, the account's default configuration is used.

A configuration is split into the following top-level sections:

Main

Controls the overall behaviour of the application.

Key	Type	Description
EnableBootstrap	boolean	Show the bootstrap menu on launch (Pay by Phone / Pay by Link). When false the application skips straight to capture.
Bootstrap.CaptureApplicationOptions	array	Which capture channels are available, e.g. ["payByPhone", "payByLink"].
Bootstrap.DefaultCaptureApplication	string	The pre-selected channel when bootstrap loads.
Bootstrap.BootstrapLogo	string	Path to a custom logo displayed on the bootstrap menu.
SubmitPspRequest	boolean	Whether to send a payment request to a PSP on form submission.
EnableDataPost	boolean	Whether to HTTP POST transaction data to a configured endpoint on completion.
EnableRedirect	boolean	Whether to redirect the browser to a configured URL on completion.
EnableManualCorrelation	boolean	Enable manual call-correlation (Keypad / Search).
CardCaptureKeyType	string	Key type for the capture session, typically "GUID".
ManualCorrelation.enableDtmfCorrelation	boolean	Allow DTMF keypad correlation.
ManualCorrelation.supressionDigit	string	The digit used as a prefix/suffix for the correlation code, e.g. "#".
ManualCorrelation.completionDigits	string	The sequence that signals the end of the correlation code, e.g. "##".
ManualCorrelation.enableSearch	boolean	Allow searching for a live call by phone number.
ManualCorrelation.searchCallStartDatetimeDeltaInMinutes	int	How far back (in minutes) to search for active calls.
ManualCorrelation.searchPageSize	int	Number of results per page in the call search list.
DefaultCurrencyCode	string	Fallback currency code when none is supplied at launch, e.g. "GBP".
allowedCardTypes	array	Whitelist of accepted card schemes, e.g. [{"name":"visa"},{"name":"mastercard"}].
Theme.theme	string	Theme mode — "custom" to load an external theme JSON.
Theme.themeConfigUrl	string	URL to the custom theme configuration file.
Theme.default	string	Default appearance, "light" or "dark".

Input

Controls how inbound parameters are interpreted.

Key	Type	Description
DecryptQueryString	boolean	Whether the query string is encrypted and needs decryption on arrival.
defaults	object	Default values for parameters not supplied in the URL, e.g. {"currencyCode":"GBP","merchantId":"..."}.
ParameterMap	object	Maps incoming parameter names to internal names, e.g. {"billingSurname":"billingLastName","amount":"paymentAmount"}. This allows callers to use their own naming conventions.

Psp

Defines the payment service provider integration.

Key	Type	Description
requestType	string	The PSP operation: "authoriseAndSettle", "authoriseandsettlewithToken", "tokenise", etc.
name	string	The PSP adapter to use, e.g. "BarclaycardFuse", "PayPoint", "vesta", "opayodirect".
api.version	string	PSP API version, e.g. "v1".

CardCapture

Defines the agent-side card capture form.

Key	Type	Description
validateLuhn	boolean	Perform a Luhn check on the PAN before submission.
phoneAutoStartEnabled	boolean	Automatically begin DTMF/ASR capture when the form loads (skip manual start).
phoneAutoStartMode	string	Auto-start mode: "DTMF" or "ASR".
fields	array	Ordered list of fields on the capture form. Each field has a captureType, layout (width), label, editability and mandatory flag.

Supported captureType values:

captureType	Description
capturePan	Secure PAN (card number) capture — agent sees only masked digits.
captureExpiryDate	Secure expiry date capture.
captureCsc	Secure CSC/CV2 capture.
amount	Payment amount field — can be editable or locked via a parameter.
freeText	Agent-editable text field bound to a parameter using {parameterName} syntax.
comboBox	Drop-down select field with predefined options.
tokeniseCard	Toggle for customer consent to tokenise/save the card.

RemoteCardCapture

Defines the customer-facing Pay by Link experience.

Key	Type	Description
CustomerUrl	string	Base URL for the customer capture page. A unique key is appended.
ValidateLuhn	boolean	Luhn validation on the customer page.
AllowSms	boolean	Allow sending the link via SMS.
AllowEmail	boolean	Allow sending the link via Email.
AllowCopy	boolean	Allow copying the link to clipboard.
SmsProvider	string	SMS delivery provider, e.g. "Azure".
SmsSenderId	string	The sender name shown on the SMS.
SmsMessageText	string	Custom SMS body. Use {{URL}} and {{CUSTOMERSHORTCODE}} as placeholders.
CopyMessageText	string	Custom message text when the link is copied. Supports {{URL}} and {{CUSTOMERSHORTCODE}}.
displayKeyValues	object	Key/value pairs from the session to display to the customer, e.g. {"amount":"{amount}"}.
Resources.ThemeSourceUrl	string	URL to the customer page theme configuration.
Resources.LogoSourceUrl	string	URL to the customer page logo.
Fields	array	Customer-side capture fields: typedPan, typedExpiryDate, typedCsc.

Output

Defines what happens after the form is submitted.

Key	Type	Description
completionForm	object	Defines success, error and cancel screens shown to the agent. Each contains fields (key/value pairs using {parameter} syntax) and text (title, message, note).
redirect	object	If redirect is enabled, defines the HTTP verb ("post" or "get") and fields to include. Field values support {parameter} syntax and inline transformation functions.
datapost	object	If datapost is enabled, defines the HTTP verb ("post" or "get"), OriginType ("fromBrowser" or "fromServer"), contentType ("form-urlencoded" or "json") and fields to include. Field values support {parameter} syntax and inline transformation functions.

---

3. Application Inputs from Known Parameters

Parameters are passed to Transact via the launch URL query string. They control authorisation, call correlation and capture data. The table below lists all known parameters.

Authorization

Parameter	Mandatory	Type	Default	Description
username	No	string	—	If supplied, dynamic authorisation is attempted. If the account is not set up for dynamic authorisation — or this is omitted — the login screen is shown.

Core

Parameter	Mandatory	Type	Default	Description
account	Yes	string	—	The short account GUID created during provisioning.
configuration	No	string	"default"	The Transact configuration to launch. If omitted, the account's default configuration is used.
cardCaptureSessionKey	No	string	Auto-generated GUID	The key under which captured card details are stored. If not provided, one is generated automatically.
allowedCardTypes	No	array of objects	—	Whitelist of allowed card types, e.g. [{ name: 'visa', credit: true, debit: true }].
tokeniseCardOption	No	enum	"hidden"	Controls the tokenise-card checkbox visibility. Options: "hiddenChecked", "hidden", "visibleChecked", "visible", "disabledChecked", "disabled".
redirectUrl	No	string	—	Single address for all redirect requests.
redirectOnSuccessUrl	No	string	—	Redirect address for successful payments.
redirectOnCancelUrl	No	string	—	Redirect address for cancelled payments.
redirectOnErrorUrl	No	string	—	Redirect address for failed payments.
datapostUrl	No	string	—	Single address for all datapost requests.
datapostOnSuccessUrl	No	string	—	Datapost address for successful payments.
datapostOnCancelUrl	No	string	—	Datapost address for cancelled payments.
datapostOnErrorUrl	No	string	—	Datapost address for failed payments.

Correlation

These parameters enable automatic call correlation — bypassing the manual Keypad/Search step.

Parameter	Mandatory	Type	Default	Description
dialogId	No	string	—	Correlate using the call's dialog ID.
sipCallId	No	string	—	Correlate using the call's SIP Call-ID.
externalCorrelationId	No	string	—	Correlate using the value sent in the X-EAIP-EXTERNALCORRELATIONID SIP header.
fromNumber	No	string	—	Correlate using the call's originating number.
toNumber	No	string	—	Correlate using the call's destination number.
telephoneNumber	No	string	—	Correlate using either the call's originating or destination number.

Capture / Payment

These parameters pre-populate the capture form and are forwarded to the PSP.

Parameter	Mandatory	Type	Default	Description
amount	No	int	0	Payment amount in atoms (smallest currency unit) to send to the PSP.
currencyCode	No	string	"GBP"	Currency code sent to the PSP.
cardHolderName	No	string	—	Name of the card holder sent to the PSP.
merchantId	No	string	—	Key specifying which merchant credentials to apply to the PSP request.
cardToken	No	string	—	A card token to send to the PSP (for tokenised repeat payments).
addressNumerics	No	string	—	Numeric values from the address for AVS checks.
postCodeNumerics	No	string	—	Numeric values from the postcode for AVS checks.
orderId	No	string	—	Order ID sent to the PSP.
customerReference	No	string	—	Customer reference sent to the PSP.
transactionReference	No	string	—	Transaction reference sent to the PSP.
description	No	string	—	Description sent to the PSP.
billingForename	No	string	—	Bill payer's forename.
billingSurname	No	string	—	Bill payer's surname.
billingAddress1	No	string	—	First line of the billing address.
billingAddress2	No	string	—	Second line of the billing address.
billingCity	No	string	—	Billing city.
billingCounty	No	string	—	Billing county.
billingCountry	No	string	—	Billing country.
billingPostCode	No	string	—	Billing postcode.
billingEmailAddress	No	string	—	Bill payer's email address.
billingTelephoneNumber	No	string	—	Bill payer's phone number.

Parameter Mapping

If your calling system uses different parameter names, the configuration's Input.ParameterMap can map them transparently. For example, {"billingSurname":"billingLastName","amount":"paymentAmount"} lets you send billingLastName and paymentAmount instead of the standard names above.
